Detect and Measure Circular Objects in an Image
This example shows how to automatically detect circles or circular objects in an image and visualize the detected circles.
Step 1: Load Image
Read and display an image of round plastic chips of various colors. Besides having plenty of circles to detect, there are a few interesting things going on in this image from a circle detection point-of-view:
There are chips of different colors, which have different contrasts with respect to the background. On one end, the blue and red ones have strong contrast on this background. On the other end, some of the yellow chips do not contrast well with the background.
Notice how some chips are on top of each other and some others that are close together and almost touching each other. Overlapping object boundaries and object occlusion are usually challenging scenarios for object detection.
rgb = imread("coloredChips.png"); imshow(rgb)
Step 2: Determine Radius Range for Searching Circles
Find the appropriate radius range of the circles using the
drawline function. Draw a line over the approximate diameter of a chip.
d = drawline;
The length of the line ROI is the diameter of the chip. Typical chips have diameters in the range 40 to 50 pixels.
pos = d.Position; diffPos = diff(pos); diameter = hypot(diffPos(1),diffPos(2))
diameter = 45.4533
Step 3: Initial Attempt to Find Circles
imfindcircles function searches for circles with a range of radii. Search for circles with radii in the range of 20 to 25 pixels. Before that, it is a good practice to ask whether the objects are brighter or darker than the background. To answer that question, look at the grayscale version of this image.
gray_image = im2gray(rgb); imshow(gray_image)
The background is quite bright and most of the chips are darker than the background. But, by default,
imfindcircles finds circular objects that are brighter than the background. So, set the parameter "ObjectPolarity" to "dark" in
imfindcircles to search for dark circles.
[centers,radii] = imfindcircles(rgb,[20 25],"ObjectPolarity","dark")
centers =  radii =
Note that the outputs
radii are empty, which means that no circles were found. This happens frequently because
imfindcircles is a circle detector, and similar to most detectors,
imfindcircles has an internal detection threshold that determines its sensitivity. In simple terms it means that the detector's confidence in a certain (circle) detection has to be greater than a certain level before it is considered a valid detection.
imfindcircles has a parameter "Sensitivity" which can be used to control this internal threshold, and consequently, the sensitivity of the algorithm. A higher "Sensitivity" value sets the detection threshold lower and leads to detecting more circles. This is similar to the sensitivity control on the motion detectors used in home security systems.
Step 4: Increase Detection Sensitivity
Coming back to the chip image, it is possible that at the default sensitivity level all the circles are lower than the internal threshold, which is why no circles were detected. By default, "Sensitivity", which is a number between 0 and 1, is set to 0.85. Increase "Sensitivity" to 0.9.
[centers,radii] = imfindcircles(rgb,[20 25],"ObjectPolarity","dark", ... "Sensitivity",0.9)
centers = 8×2 146.1895 198.5824 328.8132 135.5883 130.3134 43.8039 175.2698 297.0583 312.2831 192.3709 327.1316 297.0077 243.9893 166.4538 271.5873 280.8920
radii = 8×1 23.1604 22.5710 22.9576 23.7356 22.9551 22.9995 22.9055 23.0298
imfindcircles found some circles - eight to be precise.
centers contains the locations of circle centers and
radii contains the estimated radii of those circles.
Step 5: Draw the Circles on the Image
viscircles can be used to draw circles on the image. Output variables
imfindcircles can be passed directly to
imshow(rgb) h = viscircles(centers,radii);
The circle centers seem correctly positioned and their corresponding radii seem to match well to the actual chips. But still quite a few chips were missed. Try increasing the "Sensitivity" even more, to 0.92.
[centers,radii] = imfindcircles(rgb,[20 25],"ObjectPolarity","dark", ... "Sensitivity",0.92); length(centers)
ans = 16
So increasing "Sensitivity" gets us even more circles. Plot these circles on the image again.
delete(h) % Delete previously drawn circles h = viscircles(centers,radii);
Step 6: Use the Second Method (Two-stage) for Finding Circles
This result looks better.
imfindcircles has two different methods for finding circles. So far the default method, called the phase coding method, was used for detecting circles. There's another method, popularly called the two-stage method, that is available in
imfindcircles. Use the two-stage method and show the results.
[centers,radii] = imfindcircles(rgb,[20 25],"ObjectPolarity","dark", ... "Sensitivity",0.92,"Method","twostage"); delete(h) h = viscircles(centers,radii);
The two-stage method is detecting more circles, at the Sensitivity of 0.92. In general, these two method are complementary in that have they have different strengths. The Phase coding method is typically faster and slightly more robust to noise than the two-stage method. But it may also need higher "Sensitivity" levels to get the same number of detections as the two-stage method. For example, the phase coding method also finds the same chips if the "Sensitivity" level is raised higher, say to 0.95.
[centers,radii] = imfindcircles(rgb,[20 25],"ObjectPolarity","dark", ... "Sensitivity",0.95); delete(h) viscircles(centers,radii);
Note that both the methods in
imfindcircles find the centers and radii of the partially visible (occluded) chips accurately.
Step 7: Why are Some Circles Still Getting Missed?
Looking at the last result, it is curious that

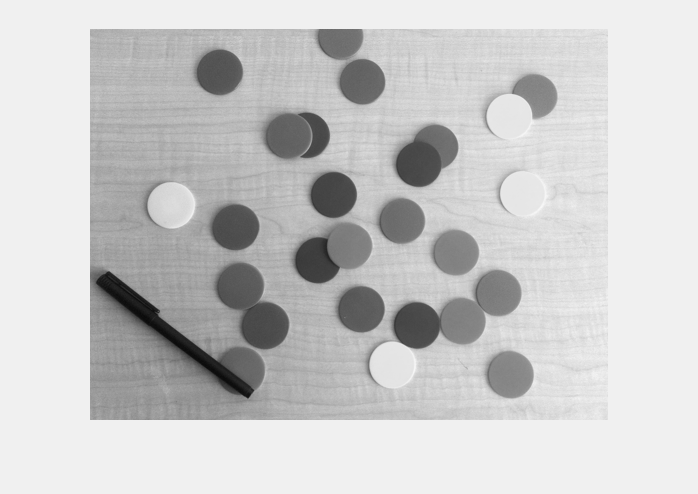

imfindcircles does not find the yellow chips in the image. The yellow chips do not have strong contrast with the background. In fact they seem to have very similar intensities as the background. Is it possible that the yellow chips are not really "darker" than the background as was assumed? To confirm, show the grayscale version of this image again.
Step 8: Find "Bright" Circles in the Image
The yellow chips are almost the same intensity, maybe even brighter, as compared to the background. Therefore, to detect the yellow chips, change "ObjectPolarity" to "bright".
[centersBright,radiiBright] = imfindcircles(rgb,[20 25], ... "ObjectPolarity","bright","Sensitivity",0.92);
Step 9: Draw "Bright" Circles with Different Color
Draw the bright circles in a different color, by changing the "Color" parameter in
imshow(rgb) hBright = viscircles(centersBright, radiiBright,"Color","b");

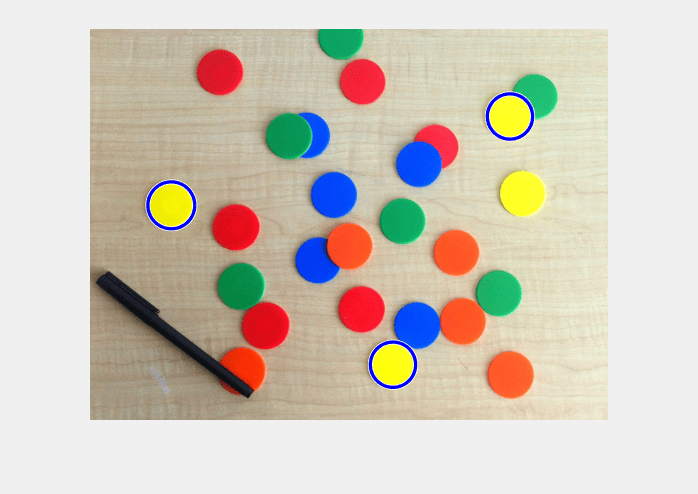

Note that three of the missing yellow chips were found, but one yellow chip is still missing. These yellow chips are hard to find because they don't stand out as well as others on this background.
Step 10: Lower the Value of "EdgeThreshold"
There is another parameter in
imfindcircles which may be useful here, namely "EdgeThreshold". To find circles,
imfindcircles uses only the edge pixels in the image. These edge pixels are essentially pixels with high gradient value. The "EdgeThreshold" parameter controls how high the gradient value at a pixel has to be before it is considered an edge pixel and included in computation. A high value (closer to 1) for this parameter will allow only the strong edges (higher gradient values) to be included, whereas a low value (closer to 0) is more permissive and includes even the weaker edges (lower gradient values) in computation. In case of the missing yellow chip, since the contrast is low, some of the boundary pixels (on the circumference of the chip) are expected to have low gradient values. Therefore, lower the "EdgeThreshold" parameter to ensure that the most of the edge pixels for the yellow chip are included in computation.
[centersBright,radiiBright,metricBright] = imfindcircles(rgb,[20 25], ... "ObjectPolarity","bright","Sensitivity",0.92,"EdgeThreshold",0.1); delete(hBright) hBright = viscircles(centersBright, radiiBright,"Color","b");
Step 11: Draw "Dark" and "Bright" Circles Together

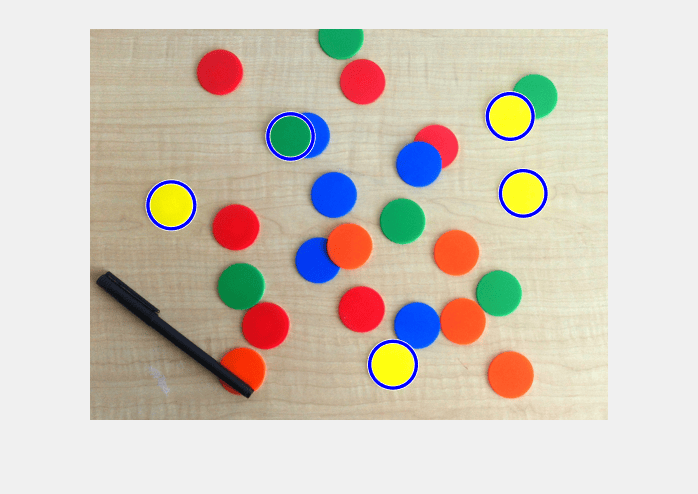

imfindcircles finds all of the yellow ones, and a green one too. Draw these chips in blue, together with the other chips that were found earlier (with "ObjectPolarity" set to "dark"), in red.
h = viscircles(centers,radii);
All the circles are detected. A final word - it should be noted that changing the parameters to be more aggressive in detection may find more circles, but it also increases the likelihood of detecting false circles. There is a trade-off between the number of true circles that can be found (detection rate) and the number of false circles that are found with them (false alarm rate).
Happy circle hunting!
