## Specify Toolbox Preferences for Linear Analysis Plots

The Control System and System Identification Toolbox Preferences dialog box allows you to set plot preferences that persist from session to session.

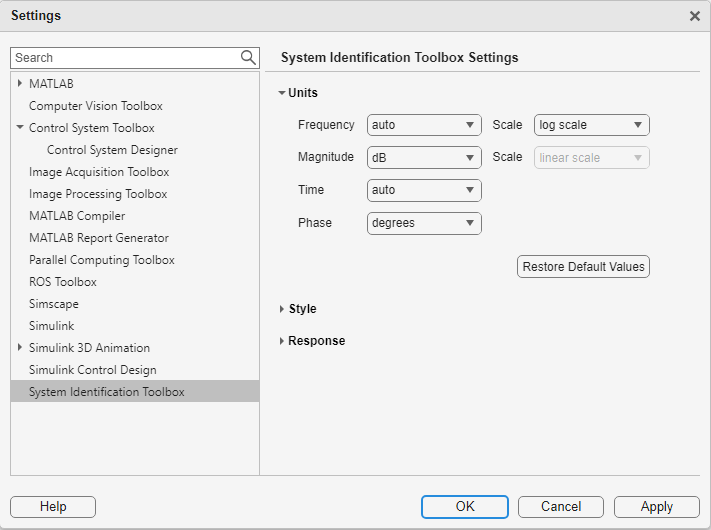

To open the preferences dialog box, at the MATLAB^{®} command line, enter the following command.

identpref

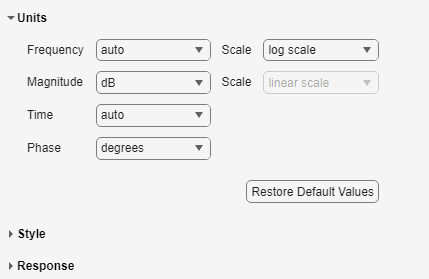

### Units Tab

Use the **Units** tab to set preferences for the following:

**Frequency**The default

`auto`

option uses`rad/TimeUnit`

as the frequency units relative to the system time units, where`TimeUnit`

is the system time units specified in the`TimeUnit`

property of the system on frequency-domain plots. For multiple systems with different time units, the units of the first system is used.For the frequency axis, you can select logarithmic or linear scales.

**Magnitude**`dB`

— Decibels`absolute value`

— Absolute value, which you can plot on a linear or logarithmic scale

**Phase**— Degrees or radians**Time**The default

`auto`

option uses the time units specified in the`TimeUnit`

property of the system on the time- and frequency-domain plots. For multiple systems with different time units, the units of the first system are used.

### Style Tab

Use the **Style** tab to toggle grid visibility and set font
preferences and axes foreground colors for all plots you create.

You have the following choices:

**Grids**— Activate grids by default in new plots.**Fonts**— Set the font size, weight (bold), and angle (italic). Select font sizes from the menus or type any font-size values in the fields.**Colors**— Specify the color vector to use for the axes foreground, which includes the X-Y axes, grid lines, and tick labels. Use a three-element vector to represent red, green, and blue (RGB) values. Vector element values can range from 0 to 1.If you do not want to specify RGB values numerically, click

**Select**to open the Color dialog box.

### Response Tab

The **Response** tab has selections for time responses and frequency responses.

For time response plots, the following options are available:

**Show settling time within***xx*% — Set the threshold of the settling time calculation to any percentage from 0 to 100%. The default is 2%.**Specify rise time from***xx*% to*yy*% — The standard definition of rise time is the time it takes the signal to go from 10% to 90% of the final value. Specify any percentages you like (from 0% to 100%), provided that the first value is smaller than the second.

For frequency response plots, the following options are available:

**Only show magnitude above**— Specify a lower limit for magnitude values in response plots so that you can focus on a region of interest.**Wrap phase at**— Wrap the phase into the interval [–180º,180º). To wrap accumulated phase across a different interval, enter the lower limit of the interval in the text box. For example, entering 0 causes the plot to wrap the phase into the interval [0º,360º).

### Control System Designer Tab

The **Control System Designer** tab has settings for the Control
System Designer app (requires Control System Toolbox™ license).

You can make the following selections:

**Compensator Format**— Select the time constant, natural frequency, or zero/pole/gain format. The time constant format is a factorization of the compensator transfer function of the form$$K\times \frac{\left(1+{T}_{{z}_{1}}s\right)\left(1+{T}_{{z}_{2}}s\right)}{\left(1+{T}_{{p}_{1}}s\right)\left(1+{T}_{{p}_{2}}s\right)}\cdots $$

where

*K*is compensator DC gain,*Tz*_{1},*Tz*_{2}, ..., are the zero time constants, and*Tp*_{1},*Tp*_{2}, ..., are the pole time constants.The natural frequency format is

$$K\times \frac{\left(1+s/{\omega}_{{z}_{1}}\right)\left(1+s/{\omega}_{{z}_{2}}\right)}{\left(1+s/{\omega}_{{p}_{1}}\right)\left(1+s/{\omega}_{{p}_{2}}\right)}\cdots $$

where

*K*is compensator DC gain,*ω*_{z1}, and*ω*_{z2}, ... and*ω*_{p1}, ω_{p2}, ..., are the natural frequencies of the zeros and poles, respectively.The zero/pole/gain format is

$$K\times \frac{\left(s+{z}_{1}\right)\left(s+{z}_{2}\right)}{\left(s+{p}_{1}\right)\left(s+{p}_{2}\right)}$$

where

*K*is the overall compensator gain, and*z*_{1},*z*_{2}, ... and*p*_{1},*p*_{2}, ..., are the zero and pole locations, respectively.**Bode Options**— By default, Control System Designer shows the plant and sensor poles and zeros as blue x's and o's, respectively. Clear this option to eliminate the plant poles and zeros from the Bode plot. The compensator poles and zeros (in red) will still appear.
