Turbomachinery
R2026bUse these blocks to model turbomachinery in the gas domain.
Simscape Blocks
 | Fan (G) | Fan in gas network |
 | Compressor (G) | Gas compressor in a thermodynamic cycle |
 | Positive-Displacement Compressor (G) | Positive displacement compressor in a gas network (Since R2022a) |
 | Turbine (G) | Gas turbine in a thermodynamic cycle |
 | Ejector (G) | Ejector in a gas network (Since R2023a) |
Featured Examples

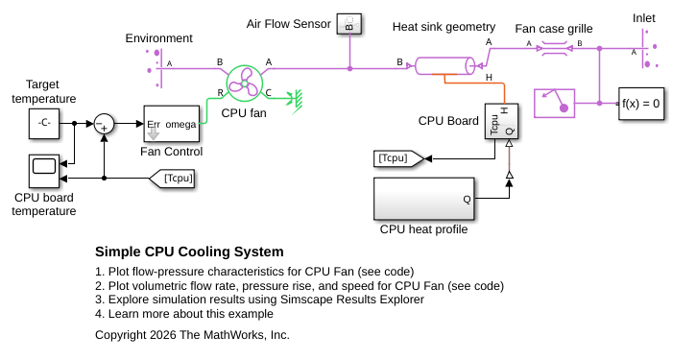

Model a Simple CPU Cooling System
Demonstrates a model of a simple CPU cooling system that consists of a CPU board, heat sink, fan controller, and cooling fan.

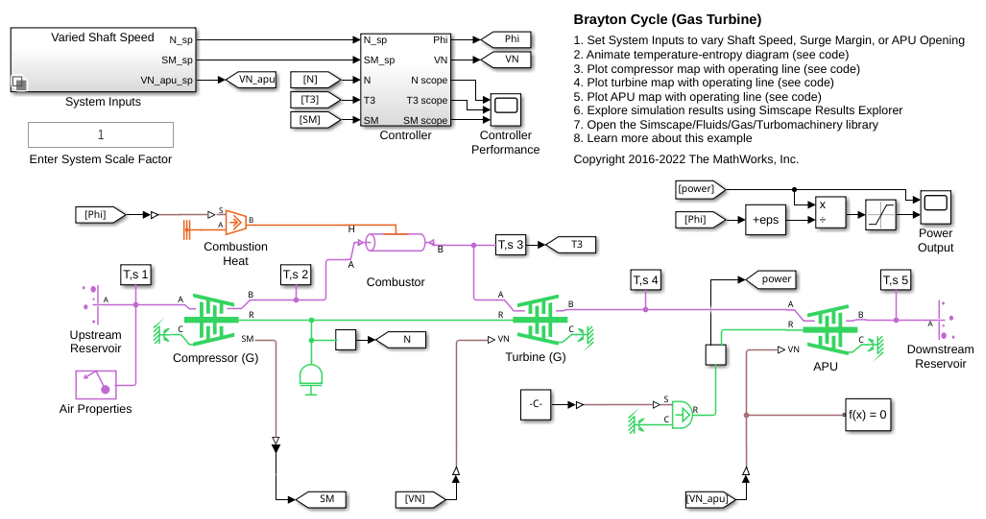

Brayton Cycle (Gas Turbine)
Models a gas turbine auxiliary power unit (APU) based on the Brayton Cycle. The power input to the system is represented by heat injection into the combustor; actual combustion chemistry is not modeled. A single shaft connects the compressor and the turbine so that the power from the turbine drives the compressor. The APU is a free turbine that further expands the exhaust stream to produce output power.

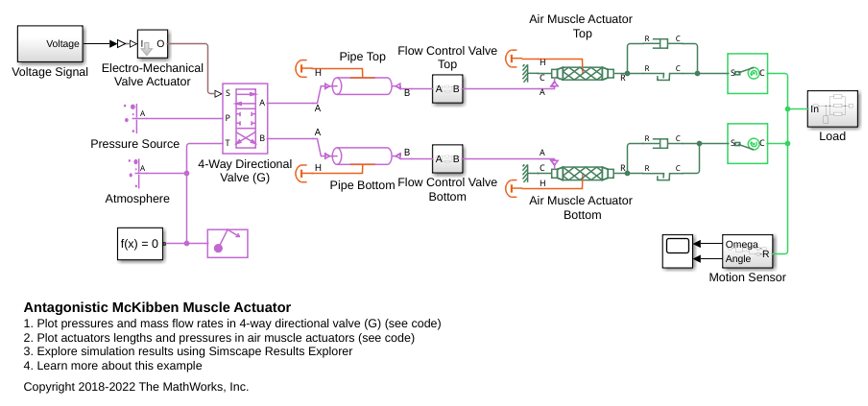

Antagonistic McKibben Muscle Actuator
This demo shows a muscle actuation based on two air muscle actuators (or McKibben artificial muscles) in antagonistic connection. The air muscle actuators are connected to the opposite sides of a lever. The 4-way directional valve is controlled by an electro-mechanical valve actuator. In the 4-way directional valve when the high-pressure path P-A and return line B-T are open, the top air muscle actuator contracts and forces the bottom air muscle actuator on the opposite side to extend. Similarly, as the high-pressure path P-B and return line A-T open, the bottom air muscle actuator starts to contract and forces the top air muscle actuator to extend. The oscillating motions of the muscles are converted into the angular rotation of the output load connected to the mechanical linkage modeled with the slider-cranks.

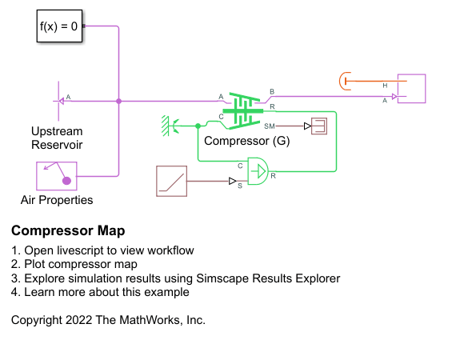

Compressor Map
Create the pressure ratio, corrected mass flow rate, and efficiency tables required to specify the performance characteristics of a dynamic compressor.
