# Performing a Multiobjective Optimization Using the Genetic Algorithm

This example shows how to perform a multiobjective optimization using multiobjective genetic algorithm function `gamultiobj`

in Global Optimization Toolbox.

### Simple Multiobjective Optimization Problem

`gamultiobj`

can be used to solve multiobjective optimization problem in several variables. Here we want to minimize two objectives, each having one decision variable.

min F(x) = [objective1(x); objective2(x)] x

where, objective1(x) = (x+2)^2 - 10, and objective2(x) = (x-2)^2 + 20

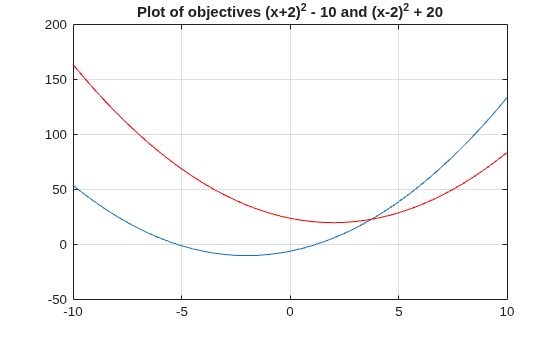

% Plot two objective functions on the same axis x = -10:0.5:10; f1 = (x+2).^2 - 10; f2 = (x-2).^2 + 20; plot(x,f1); hold on; plot(x,f2,'r'); grid on; title('Plot of objectives ''(x+2)^2 - 10'' and ''(x-2)^2 + 20''');

The two objectives have their minima at `x = -2`

and `x = +2`

respectively. However, in a multiobjective problem, `x = -2`

, `x = 2`

, and any solution in the range `-2 <= x <= 2`

is equally optimal. There is no single solution to this multiobjective problem. The goal of the multiobjective genetic algorithm is to find a set of solutions in that range (ideally with a good spread). The set of solutions is also known as a Pareto front. All solutions on the Pareto front are optimal.

### Coding the Fitness Function

We create a MATLAB file named `simple_multiobjective.m`

:

function y = simple_multiobjective(x) y(1) = (x+2)^2 - 10; y(2) = (x-2)^2 + 20;

The Genetic Algorithm solver assumes the fitness function will take one input `x`

, where `x`

is a row vector with as many elements as the number of variables in the problem. The fitness function computes the value of each objective function and returns these values in a single vector output `y`

.

### Minimizing Using `gamultiobj`

To use the `gamultiobj`

function, we need to provide at least two input arguments, a fitness function, and the number of variables in the problem. The first two output arguments returned by `gamultiobj`

are `X`

, the points on Pareto front, and `FVAL`

, the objective function values at the values `X`

. A third output argument, `exitFlag`

, tells you the reason why `gamultiobj`

stopped. A fourth argument, `OUTPUT`

, contains information about the performance of the solver. `gamultiobj`

can also return a fifth argument, `POPULATION`

, that contains the population when `gamultiobj`

terminated and a sixth argument, `SCORE`

, that contains the function values of all objectives for `POPULATION`

when `gamultiobj`

terminated.

FitnessFunction = @simple_multiobjective; numberOfVariables = 1; [x,fval] = gamultiobj(FitnessFunction,numberOfVariables);

Optimization terminated: maximum number of generations exceeded.

The `X`

returned by the solver is a matrix in which each row is the point on the Pareto front for the objective functions. The `FVAL`

is a matrix in which each row contains the value of the objective functions evaluated at the corresponding point in `X`

.

size(x) size(fval)

ans = 18 1 ans = 18 2

### Constrained Multiobjective Optimization Problem

`gamultiobj`

can handle optimization problems with linear inequality, equality, and simple bound constraints. Here we want to add bound constraints on simple multiobjective problem solved previously.

min F(x) = [objective1(x); objective2(x)] x

subject to -1.5 <= x <= 0 (bound constraints)

where, objective1(x) = (x+2)^2 - 10, and objective2(x) = (x-2)^2 + 20

`gamultiobj`

accepts linear inequality constraints in the form `A*x <= b`

and linear equality constraints in the form `Aeq*x = beq`

and bound constraints in the form `lb <= x <= ub`

. We pass `A`

and `Aeq`

as matrices and `b`

, `beq`

, `lb`

, and `ub`

as vectors. Since we have no linear constraints in this example, we pass `[]`

for those inputs.

A = []; b = []; Aeq = []; beq = []; lb = -1.5; ub = 0; x = gamultiobj(FitnessFunction,numberOfVariables,A,b,Aeq,beq,lb,ub);

Optimization terminated: maximum number of generations exceeded.

All solutions in `X`

(each row) will satisfy all linear and bound constraints within the tolerance specified in `options.ConstraintTolerance`

. However, if you use your own crossover or mutation function, ensure that the new individuals are feasible with respect to linear and simple bound constraints.

### Adding Visualization

`gamultiobj`

can accept one or more plot functions through the options argument. This feature is useful for visualizing the performance of the solver at run time. Plot functions can be selected using `optimoptions`

.

Here we use `optimoptions`

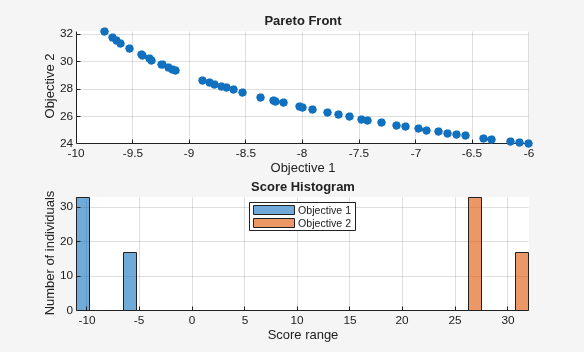

to select two plot functions. The first plot function is `gaplotpareto`

, which plots the Pareto front (limited to any three objectives) at every generation. The second plot function is `gaplotscorediversity`

, which plots the score diversity for each objective. The options are passed as the last argument to the solver.

```
options = optimoptions(@gamultiobj,'PlotFcn',{@gaplotpareto,@gaplotscorediversity});
gamultiobj(FitnessFunction,numberOfVariables,[],[],[],[],lb,ub,options);
```

Optimization terminated: maximum number of generations exceeded.

### Vectorizing Your Fitness Function

Consider the previous fitness functions again:

objective1(x) = (x+2)^2 - 10, and objective2(x) = (x-2)^2 + 20

By default, the `gamultiobj`

solver only passes in one point at a time to the fitness function. However, if the fitness function is vectorized to accept a set of points and returns a set of function values you can speed up your solution.

For example, if the solver needs to evaluate five points in one call to this fitness function, then it will call the function with a matrix of size 5-by-1, i.e., 5 rows and 1 column (recall that 1 is the number of variables).

Create a MATLAB file called `vectorized_multiobjective.m`

:

function scores = vectorized_multiobjective(pop) popSize = size(pop,1); % Population size numObj = 2; % Number of objectives % initialize scores scores = zeros(popSize, numObj); % Compute first objective scores(:,1) = (pop + 2).^2 - 10; % Compute second objective scores(:,2) = (pop - 2).^2 + 20;

This vectorized version of the fitness function takes a matrix `pop`

with an arbitrary number of points, the rows of `pop`

, and returns a matrix of size `populationSize`

-by- `numberOfObjectives`

.

We need to specify that the fitness function is vectorized using the options created using `optimoptions`

. The options are passed in as the ninth argument.

```
FitnessFunction = @(x) vectorized_multiobjective(x);
options = optimoptions(@gamultiobj,'UseVectorized',true);
gamultiobj(FitnessFunction,numberOfVariables,[],[],[],[],lb,ub,options);
```

Optimization terminated: average change in the spread of Pareto solutions less than options.FunctionTolerance.
