This example shows how to set fixed-point data types by instrumenting MATLAB® code for min/max logging and using the tools to propose data types.

The functions you will use are:

`buildInstrumentedMex`

- Build MEX function with instrumentation enabled`showInstrumentationResults`

- Show instrumentation results`clearInstrumentationResults`

- Clear instrumentation results

The function that you convert to fixed-point in this example is a second-order direct-form 2 transposed filter. You can substitute your own function in place of this one to reproduce these steps in your own work.

function [y,z] = fi_2nd_order_df2t_filter(b,a,x,y,z) for i=1:length(x) y(i) = b(1)*x(i) + z(1); z(1) = b(2)*x(i) + z(2) - a(2) * y(i); z(2) = b(3)*x(i) - a(3) * y(i); end end

For a MATLAB® function to be instrumented, it must be suitable for code generation. For information on code generation, see the reference page for `buildInstrumentedMex`

. A MATLAB® Coder™ license is not required to use `buildInstrumentedMex`

.

In this function the variables `y`

and `z`

are used as both inputs and outputs. This is an important pattern because:

You can set the data type of

`y`

and`z`

outside the function, thus allowing you to re-use the function for both fixed-point and floating-point types.The generated C code will create

`y`

and`z`

as references in the function argument list. For more information about this pattern, see the documentation under Code Generation from MATLAB® > User's Guide > Generating Efficient and Reusable Code > Generating Efficient Code > Eliminating Redundant Copies of Function Inputs.

Run the following code to copy the test function into a temporary directory so this example doesn't interfere with your own work.

```
tempdirObj = fidemo.fiTempdir('fi_instrumentation_fixed_point_filter_demo');
```

copyfile(fullfile(matlabroot,'toolbox','fixedpoint','fidemos','+fidemo',... 'fi_2nd_order_df2t_filter.m'),'.','f');

Run the following code to capture current states, and reset the global states.

FIPREF_STATE = get(fipref); reset(fipref)

In this example, the requirements of the design determine the data type of input `x`

. These requirements are signed, 16-bit, and fractional.

N = 256; x = fi(zeros(N,1),1,16,15);

The requirements of the design also determine the fixed-point math for a DSP target with a 40-bit accumulator. This example uses floor rounding and wrap overflow to produce efficient generated code.

F = fimath('RoundingMethod','Floor',... 'OverflowAction','Wrap',... 'ProductMode','KeepLSB',... 'ProductWordLength',40,... 'SumMode','KeepLSB',... 'SumWordLength',40);

The following coefficients correspond to a second-order lowpass filter created by

[num,den] = butter(2,0.125)

The values of the coefficients influence the range of the values that will be assigned to the filter output and states.

num = [0.0299545822080925 0.0599091644161849 0.0299545822080925]; den = [1 -1.4542435862515900 0.5740619150839550];

The data type of the coefficients, determined by the requirements of the design, are specified as 16-bit word length and scaled to best-precision. A pattern for creating `fi`

objects from constant coefficients is:

1. Cast the coefficients to `fi`

objects using the default round-to-nearest and saturate overflow settings, which gives the coefficients better accuracy.

2. Attach `fimath`

with floor rounding and wrap overflow settings to control arithmetic, which leads to more efficient C code.

b = fi(num,1,16); b.fimath = F; a = fi(den,1,16); a.fimath = F;

Hard-code the filter coefficients into the implementation of this filter by passing them as constants to the `buildInstrumentedMex`

command.

B = coder.Constant(b); A = coder.Constant(a);

The values of the coefficients and values of the inputs determine the data types of output `y`

and state vector `z`

. Create them with a scaled double datatype so their values will attain full range and you can identify potential overflows and propose data types.

yisd = fi(zeros(N,1),1,16,15,'DataType','ScaledDouble','fimath',F); zisd = fi(zeros(2,1),1,16,15,'DataType','ScaledDouble','fimath',F);

To instrument the MATLAB® code, you create a MEX function from the MATLAB® function using the `buildInstrumentedMex`

command. The inputs to `buildInstrumentedMex`

are the same as the inputs to `fiaccel`

, but `buildInstrumentedMex`

has no `fi`

-object restrictions. The output of `buildInstrumentedMex`

is a MEX function with instrumentation inserted, so when the MEX function is run, the simulated minimum and maximum values are recorded for all named variables and intermediate values.

Use the `'-o'`

option to name the MEX function that is generated. If you do not use the `'-o'`

option, then the MEX function is the name of the MATLAB® function with `'_mex'`

appended. You can also name the MEX function the same as the MATLAB® function, but you need to remember that MEX functions take precedence over MATLAB® functions and so changes to the MATLAB® function will not run until either the MEX function is re-generated, or the MEX function is deleted and cleared.

buildInstrumentedMex fi_2nd_order_df2t_filter ... -o filter_scaled_double ... -args {B,A,x,yisd,zisd}

The test bench for this system is set up to run chirp and step signals. In general, test benches for systems should cover a wide range of input signals.

The first test bench uses a chirp input. A chirp signal is a good representative input because it covers a wide range of frequencies.

t = linspace(0,1,N); % Time vector from 0 to 1 second f1 = N/2; % Target frequency of chirp set to Nyquist xchirp = sin(pi*f1*t.^2); % Linear chirp from 0 to Fs/2 Hz in 1 second x(:) = xchirp; % Cast the chirp to fixed-point

The instrumented MEX function must be run to record minimum and maximum values for that simulation run. Subsequent runs accumulate the instrumentation results until they are cleared with `clearInstrumentationResults`

.

Note that the numerator and denominator coefficients were compiled as constants so they are not provided as input to the generated MEX function.

ychirp = filter_scaled_double(x,yisd,zisd);

The plot of the filtered chirp signal shows the lowpass behavior of the filter with these particular coefficients. Low frequencies are passed through and higher frequencies are attenuated.

clf plot(t,x,'c',t,ychirp,'bo-') title('Chirp') legend('Input','Scaled-double output') figure(gcf); drawnow;

The `showInstrumentationResults`

command displays the code generation report with instrumented values. The input to `showInstrumentationResults`

is the name of the instrumented MEX function for which you wish to show results.

This is the list of options to the `showInstrumentationResults`

command:

`-defaultDT T`

Default data type to propose for doubles, where`T`

is a`numerictype`

object, or one of the strings`{remainFloat, double, single, int8, int16, int32, int64, uint8, uint16, uint32, uint64}`

. The default is`remainFloat`

.`-nocode`

Do not show MATLAB code in the printable report. Display only the logged variables tables. This option only has effect in combination with the -printable option.`-optimizeWholeNumbers`

Optimize the word length of variables whose simulation min/max logs indicate that they were always whole numbers.`-percentSafetyMargin N`

Safety margin for simulation min/max, where`N`

represents a percent value.`-printable`

Create a printable report and open in the system browser.`-proposeFL`

Propose fraction lengths for specified word lengths.`-proposeWL`

Propose word lengths for specified fraction lengths.

Potential overflows are only displayed for `fi`

objects with Scaled Double data type.

This particular design is for a DSP, where the word lengths are fixed, so use the `proposeFL`

flag to propose fraction lengths.

showInstrumentationResults filter_scaled_double -proposeFL

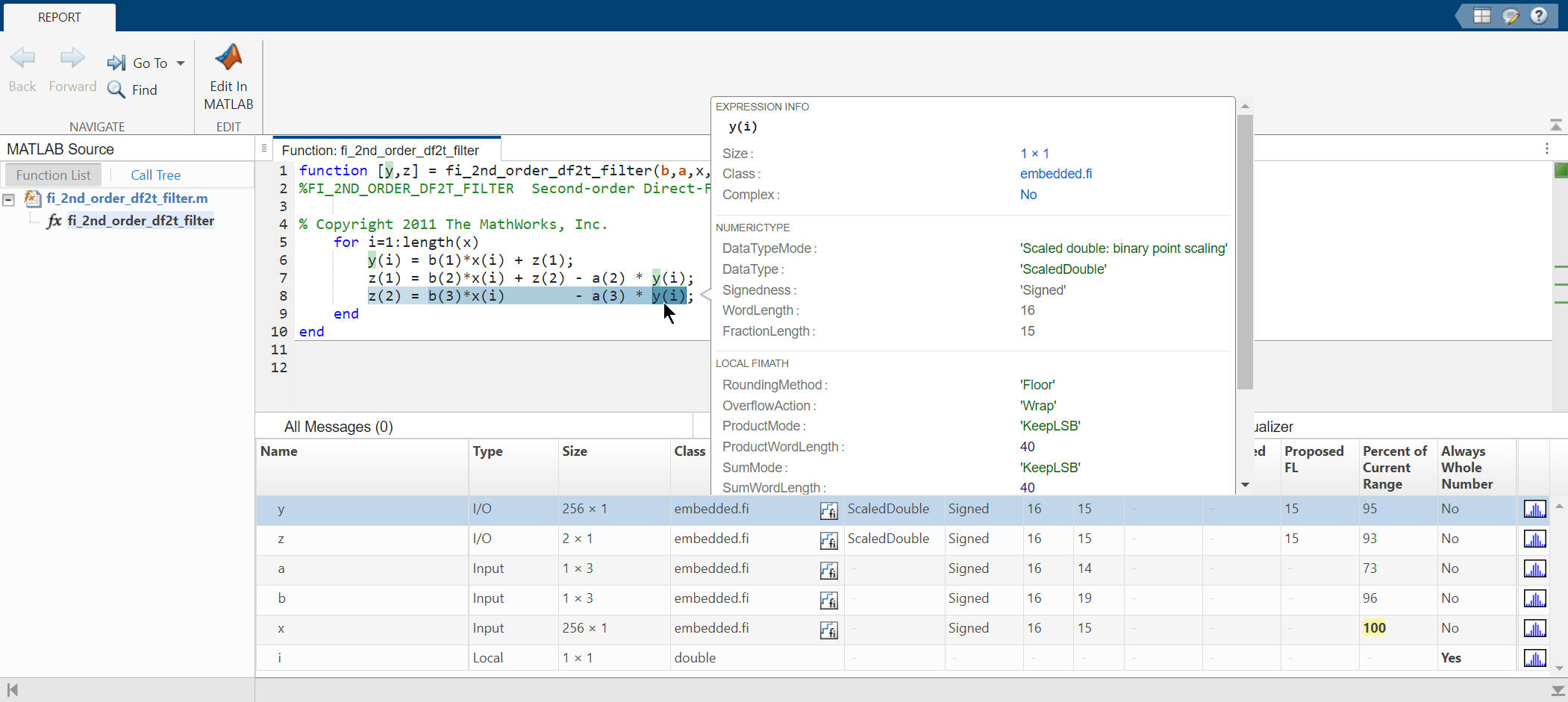

Hover over expressions or variables in the instrumented code generation report to see the simulation minimum and maximum values. In this design, the inputs fall between -1 and +1, and the values of all variables and intermediate results also fall between -1 and +1. This suggests that the data types can all be fractional (fraction length one bit less than the word length). However, this will not always be true for this function for other kinds of inputs and it is important to test many types of inputs before setting final fixed-point data types.

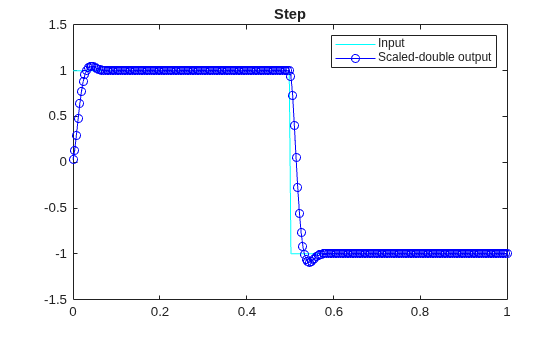

The next test bench is run with a step input. A step input is a good representative input because it is often used to characterize the behavior of a system.

xstep = [ones(N/2,1);-ones(N/2,1)]; x(:) = xstep;

The instrumentation results are accumulated until they are cleared with `clearInstrumentationResults`

.

ystep = filter_scaled_double(x,yisd,zisd); clf plot(t,x,'c',t,ystep,'bo-') title('Step') legend('Input','Scaled-double output') figure(gcf); drawnow;

Even though the inputs for step and chirp inputs are both full range as indicated by `x`

at 100 percent current range in the instrumented code generation report, the step input causes overflow while the chirp input did not. This is an illustration of the necessity to have many different inputs for your test bench. For the purposes of this example, only two inputs were used, but real test benches should be more thorough.

showInstrumentationResults filter_scaled_double -proposeFL

To prevent overflow, set proposed fixed-point properties based on the proposed fraction lengths of 14-bits for `y`

and `z`

from the instrumented code generation report.

At this point in the workflow, you use true fixed-point types (as opposed to the scaled double types that were used in the earlier step of determining data types).

yi = fi(zeros(N,1),1,16,14,'fimath',F); zi = fi(zeros(2,1),1,16,14,'fimath',F);

Create an instrumented fixed-point MEX function by using fixed-point inputs and the `buildInstrumentedMex`

command.

buildInstrumentedMex fi_2nd_order_df2t_filter ... -o filter_fixed_point ... -args {B,A,x,yi,zi}

After converting to fixed-point, run the test bench again with fixed-point inputs to validate the design.

Run the fixed-point algorithm with a chirp input to validate the design.

x(:) = xchirp; [y,z] = filter_fixed_point(x,yi,zi); [ysd,zsd] = filter_scaled_double(x,yisd,zisd); err = double(y) - double(ysd);

Compare the fixed-point outputs to the scaled-double outputs to verify that they meet your design criteria.

clf subplot(211);plot(t,x,'c',t,ysd,'bo-',t,y,'mx') xlabel('Time (s)'); ylabel('Amplitude') legend('Input','Scaled-double output','Fixed-point output'); title('Fixed-Point Chirp') subplot(212);plot(t,err,'r');title('Error');xlabel('t'); ylabel('err'); figure(gcf); drawnow;

Inspect the variables and intermediate results to ensure that the min/max values are within range.

```
showInstrumentationResults filter_fixed_point
```

Run the fixed-point algorithm with a step input to validate the design.

Run the following code to clear the previous instrumentation results to see only the effects of running the step input.

```
clearInstrumentationResults filter_fixed_point
```

Run the step input through the fixed-point filter and compare with the output of the scaled double filter.

x(:) = xstep; [y,z] = filter_fixed_point(x,yi,zi); [ysd,zsd] = filter_scaled_double(x,yisd,zisd); err = double(y) - double(ysd);

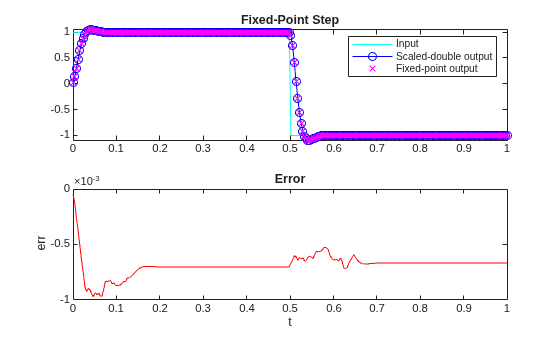

Plot the fixed-point outputs against the scaled-double outputs to verify that they meet your design criteria.

clf subplot(211);plot(t,x,'c',t,ysd,'bo-',t,y,'mx') title('Fixed-Point Step'); legend('Input','Scaled-double output','Fixed-point output') subplot(212);plot(t,err,'r');title('Error');xlabel('t'); ylabel('err'); figure(gcf); drawnow;

Inspect the variables and intermediate results to ensure that the min/max values are within range.

```
showInstrumentationResults filter_fixed_point
```

Run the following code to restore the global states.

fipref(FIPREF_STATE); clearInstrumentationResults filter_fixed_point clearInstrumentationResults filter_scaled_double clear fi_2nd_order_df2t_filter_fixed_instrumented clear fi_2nd_order_df2t_filter_float_instrumented

Run the following code to delete the temporary directory.

```
tempdirObj.cleanUp;
%#ok<*ASGLU>
```
