iircomb

IIR comb notch or peak filter

Syntax

[num,den] = iircomb(n,bw)

[num,den] = iircomb(n,bw,ab)

[num,den] = iircomb(___,type)

Description

[num,den] = iircomb(n,bw) returns a digital notching filter with order n and with the width of the filter notch at -3 dB set to bw, the filter bandwidth.

For the notching filter, the transfer function takes the form:

$$H(z)=b\frac{1-z^{-n}}{1-\alpha z^{-n}}$$

where α and b are positive scalars and n is the filter order or the number of notches in the filter minus 1.

[num,den] = iircomb(n,bw,ab) returns a digital notching filter whose bandwidth, bw, is specified at a level of –ab decibels.

[num,den] = iircomb(___,type) returns either a digital notch filter or a digital peaking filter as specified by type.

The transfer function for peaking filters is:

$$H(z)=b\frac{1-z^{-n}}{1+a{z}^{-n}}$$

Examples

Design IIR Notch Filter

Design and plot an IIR notch filter with 11 notches (equal to filter order plus 1) that removes a 60 Hz tone (f0) from a signal at 600 Hz(fs). For this example, set the Q factor for the filter to 35 and use it to specify the filter bandwidth.

fs = 600;
fo = 60;
q = 35;
bw = (fo/(fs/2))/q;
[b,a] = iircomb(fs/fo,bw,'notch'); % Note type flag 'notch'

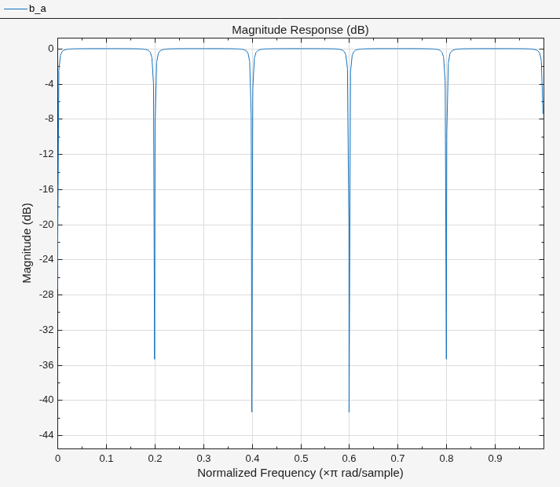

Visualize the frequency response of the filter. Note that the notches are evenly spaced and one falls at exactly 60 Hz.

filterAnalyzer(b,a);

Input Arguments

n — Order of digital filter

positive integer

Order of the digital filter, specified as a positive integer. n also defines the number of notches (or peaks) in the filter across the frequency range 0 to 2π. The number of notches (or peaks) equals n+1.

Data Types: single | double

bw — Bandwidth of filter

positive scalar in the range (0,1)

Bandwidth of the filter at a level of –ab decibels, specified as a positive scalar in the range (0,1).

The quality factor (Q factor) q for the filter is related to the filter bandwidth by q = ω₀/bw where ω₀ is the frequency to remove from the signal.

Data Types: single | double

ab — Magnitude response at filter bandwidth

-3 (default) | scalar

Magnitude response at the filter bandwidth bw, specified as a scalar in dB. You can include the optional input argument ab to specify the magnitude response at a level other than the default -3 dB, for example, -6 dB or 0 dB. If you do not include the argument ab, the function sets the magnitude response at the default -3 dB level.

Data Types: single | double

type — Type of digital filter

'notch' (default) | 'peak'

Type of the digital filter, specified as either:

• 'notch' — Design an IIR notch filter. Notch filters attenuate the response at the specified frequencies. This is the default type. When you omit the type input argument, iircomb function returns a notch filter.

• 'peak' — Design an IIR peaking filter. Peaking filters boost the signal at the specified frequencies.

Output Arguments

num — Numerator coefficients

real-valued row vector

Numerator coefficients of the IIR filter transfer function, returned as a real-valued row vector. For an nth-order filter, the number of elements in the row vector is n+1.

Data Types: single | double

den — Denominator coefficients

real-valued row vector

Denominator coefficients of the IIR filter transfer function, returned as a real-valued row vector. For an nth-order filter, the number of elements in the row vector is n+1.

Data Types: single | double

References

[1] Orfanidis, S.J., Introduction to Signal Processing, Englewood Cliffs, New Jersey: Prentice-Hall, 1996.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
