Stability is a standard requirement for control systems to avoid loss of control and damage to equipment. For linear feedback systems, stability can be assessed by looking at the poles of the closed-loop transfer function.

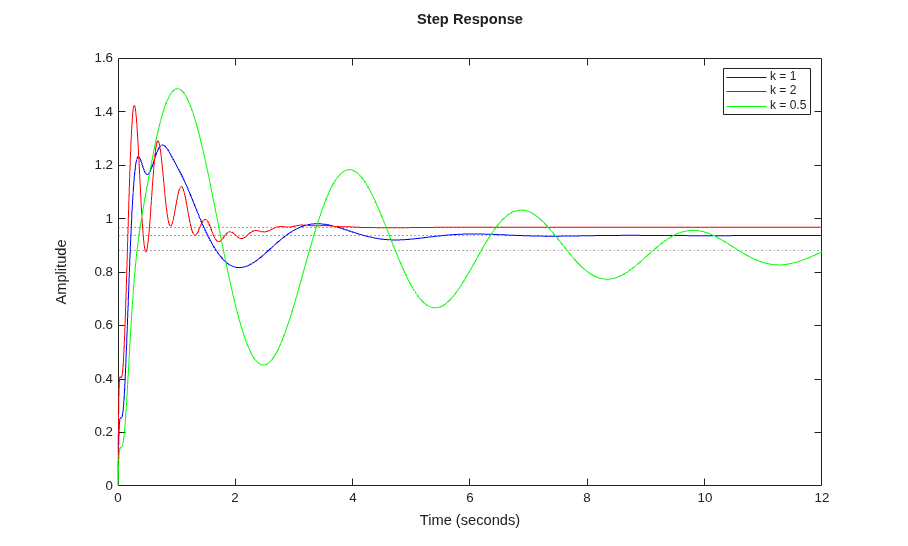

Gain and phase margins measure how much gain or phase variation at the gain crossover frequency will cause a loss of stability. Together, these two quantities give an estimate of the safety margin for closed-loop stability. The smaller the stability margins, the more fragile stability is.

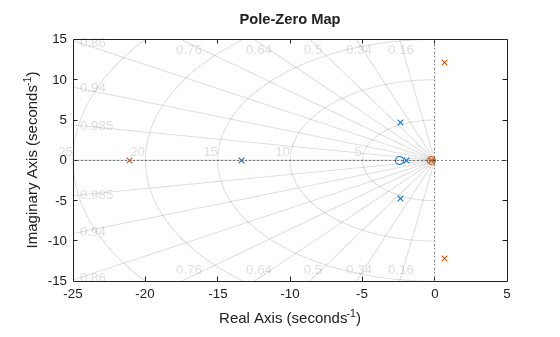

Pole and Zero Locations
|Poles of dynamic system
|Zeros and gain of SISO dynamic system
|Natural frequency and damping ratio
|Sort discrete-time poles by magnitude
|Sort continuous-time poles by real part
|Invariant zeros of linear system
|Pole-zero plot of dynamic system
|Plot pole-zero map for I/O pairs of model
