IntegerOutput RS Decoder HDL Optimized
Decode data using ReedSolomon (RS) decoder
Libraries:
Communications Toolbox HDL Support /
Error Detection and Correction /
Block
Description
The IntegerOutput RS Decoder HDL Optimized block decodes data using RS decoder. The RS decoding follows the same standards as any other cyclic redundancy code. Use this block to model communications system forward error correction (FEC) codes. The block provides an architecture suitable for HDL code generation and hardware deployment.
For more information about the RS decoder, see the IntegerOutput RS Decoder block. For more information on representing data for RS codes, see Integer Format (ReedSolomon Only).
Examples

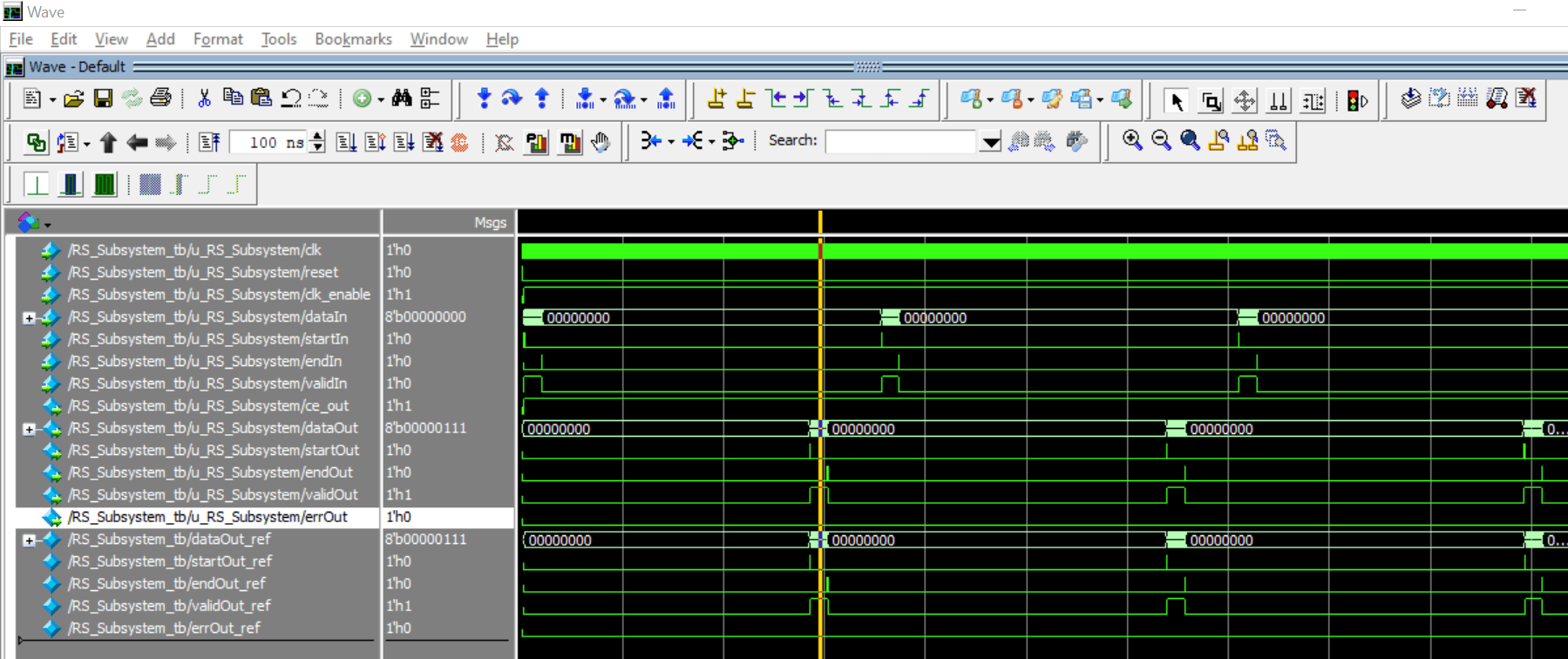

Using HDL Optimized RS Encoder/Decoder Library Blocks
Implement encoder and decoder for the IEEE® 802.16 standard [ 1 ] using the HDL Optimized ReedSolomon (RS) Encoder and Decoder library blocks.
Ports
Input
dataIn — Input data
scalar
Input data, specified as a scalar representing one symbol. For binary point
scaling, the input data type must be an unsigned integer or an unsigned fixed point.
The double
data type is allowed for simulation, but not for HDL
code generation.
Data Types: double
 uint8
 uint16
 uint32
 uint64
 fixed point
startIn — Start of input frame indicator
scalar
Start of input frame indicator, specified as a Boolean scalar.
Data Types: Boolean
endIn — End of input frame indicator
scalar
End of input frame indicator, specified as a Boolean scalar.
Data Types: Boolean
validIn — Valid input data indicator
scalar
Valid input data indicator, specified as a Boolean scalar.
This is a control signal that indicates if the data on the dataIn port is valid.
Data Types: Boolean
Output
dataOut — Decoded message data
scalar
Decoded message data, returned as a scalar. This output data width is the same as the input data width.
Data Types: double
 uint8
 uint16
 uint32
 uint64
 fixed point
startOut — Start of output frame indicator
scalar
Start of output frame indicator, returned as a Boolean scalar.
Data Types: Boolean
endOut — End of output frame indicator
scalar
End of output frame indicator, returned as a Boolean scalar.
Data Types: Boolean
validOut — Valid output data indicator
scalar
Valid output data indicator, returned as a Boolean scalar.
This is a control signal that indicates if the data on the dataOut port is valid.
Data Types: Boolean
errOut — Indications of corruption of received data
scalar
Indications of corruption of the received data, returned as a Boolean scalar.
When this value is 1
(true
) , the output
contains at least one error. When this value is 0
(false
), the output contains zero errors.
If the number of errors in the input codeword is greater than (Codeword
length – Message length)/2
, the
block outputs data without correcting the errors and sets the
errOut port to 1
(true
)
to indicate that errors that cannot be corrected exist in the input codeword.
Data Types: Boolean
numErrors — Number of corrected errors
nonnegative scalar
Number of corrected errors, returned as a nonnegative scalar.
The maximum number of errors an RS code can correct is equal to
(Codeword length – Message length)/2. If
the number of errors in the input codeword is greater than (Codeword
length – Message length)/2, the block outputs data
without correcting the errors and sets the numErrors port to
0
to indicate that none of those errors can be corrected.
Dependencies
To enable this port, select the Output number of corrected symbol errors parameter.
Data Types: uint8
Parameters
Codeword length — Length of codeword
7
(default)  range from 7 to 65, 535
Specify the codeword length.
The codeword length N
must be an integer equal to
2^{M} – 1, where M is
an integer in the range from 3 to 16. For more information on representing data for RS
codes, see Integer Format (ReedSolomon Only).
Message length — Length of message
3
(default)  positive integer
Specify the message length.
For more information on representing data for RS codes, see Integer Format (ReedSolomon Only).
Source of primitive polynomial — Primitive polynomial source
Auto
(default)  Property
Specify the source of the primitive polynomial.
Select
Auto
to specify the primitive polynomial based on the Codeword length parameter value. The degree of the primitive polynomial is calculated as M =ceil
(log_{2}(Codeword length).Select
Property
to specify the primitive polynomial using the Primitive polynomial parameter.
Primitive polynomial — Primitive polynomial
[ 1 0 1 1 ]
(default)  binary row vector
Specify a binary row vector representing the primitive polynomial in descending order of powers.
For more information on how to specify a primitive polynomial, see Primitive Polynomials and Element Representations.
Dependencies
To enable this parameter, set the Source of primitive
polynomial parameter to Property
.
Source of B, the starting power for roots of the primitive polynomial — Source of starting power for roots of primitive polynomial
Auto
(default)  Property
Specify the source of the starting power for roots of the primitive polynomial.
Select
Property
to enable the B value parameter.Select
Auto
, to use the B value parameter default value of1
.
B value — Starting exponent of roots
1
(default)  positive integer
The starting exponent of the roots.
Dependencies
To enable this parameter, set the Source of B, the starting power for
roots of the primitive polynomial parameter to
Property
.
Output number of corrected symbol errors — Number of corrected symbol errors
off
(default)  on
Select this parameter to enable the numErrors output port. This port outputs the number of corrected errors.
Algorithms
This figure shows a sample output of the IntegerOutput RS Decoder HDL Optimized block with a default configuration.
Points to Consider
Each input frame must contain symbols less than or equal to Codeword length. A shortened code is inferred when the number of valid data samples between startIn and endIn is less than Codeword length.
To get a proper output for two sequential input frames, the gap between the frames must be greater than the sum of the block latency and the Message length.
The generator polynomial is not specified explicitly. However, it is defined by the Codeword length, Message length, and the B value for the starting exponent of the roots.
Performance
The performance of the synthesized HDL code varies with the target and synthesis options. It also varies based on the input data type.
This table shows the resource and performance data synthesis results when you provide an
input data type of uint8
, specify the Code length
parameter as 255
, and Message length parameter as
223
. The generated HDL is targeted to the AMD^{®}
Zynq^{®} 7000 ZC706 evaluation board. The design
achieves a clock frequency of 58.09 MHz.
Resource  Number Used

Slice LUTs  8882
Slice Registers  5399
DSPs  0
Block RAMs  1
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
Usage notes and limitations:
Not recommended for production code.
HDL Code Generation
Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.
HDL Coder™ provides additional configuration options that affect HDL implementation and synthesized logic.
This block has one default HDL architecture.
ConstrainedOutputPipeline  Number of registers to place at
the outputs by moving existing delays within your design. Distributed
pipelining does not redistribute these registers. The default is

InputPipeline  Number of input pipeline stages
to insert in the generated code. Distributed pipelining and constrained
output pipelining can move these registers. The default is

OutputPipeline  Number of output pipeline stages
to insert in the generated code. Distributed pipelining and constrained
output pipelining can move these registers. The default is

You cannot generate HDL for this block inside a Resettable Synchronous Subsystem (HDL Coder).
Version History
Introduced in R2012bR2023b: Added resource and performance data synthesis results
Added a new section with resource and performance data synthesis results for the IntegerOutput RS Decoder HDL Optimized block.
