ccdesign
Central composite design
Syntax
dCC = ccdesign(n)
[dCC,blocks] = ccdesign(n)
[...] = ccdesign(n,'Name
',value
)
Description
dCC = ccdesign(n)
generates
a central composite design for n
factors. n
must
be an integer 2
or larger. The output matrix dCC
is m-by-n
,
where m is the number of runs in the design. Each
row represents one run, with settings for all factors represented
in the columns. Factor values are normalized so that the cube points
take values between -1
and 1
.
[dCC,blocks] = ccdesign(n)
requests
a blocked design. The output blocks
is an m-by-1
vector of block numbers for each run. Blocks indicate runs that are
to be measured under similar conditions to minimize the effect of
inter-block differences on the parameter estimates.
[...] = ccdesign(n,'
specifies
one or more optional name/value pairs for the design. Valid parameters
and their values are listed in the following table. Specify Name
',value
)Name
in
single quotes.
Parameter | Description | Values | Value Description |
---|---|---|---|
center | Number of center points. | Integer | Number of center points to include. |
'uniform' | Select number of center points to give uniform precision. | ||
'orthogonal' | Select number of center points to give an orthogonal design. This is the default. | ||
fraction | Fraction of full-factorial cube, expressed as an exponent of 1/2. | 0 | Whole design. Default when n ≤
4. |
1 | 1/2 fraction. Default when 4 < n ≤ 7 or n >
11. | ||
2 | 1/4 fraction. Default when 7 < n ≤
9 | ||
3 | 1/8 fraction. Default when n =
10. | ||
4 | 1/16 fraction. Default when n =
11. | ||
type | Type of CCD. | 'circumscribed' | Circumscribed (CCC). This is the default. |
'inscribed' | Inscribed (CCI). | ||
'faced' | Faced (CCF). | ||
blocksize | Maximum number of points per block. | Integer | The default is |

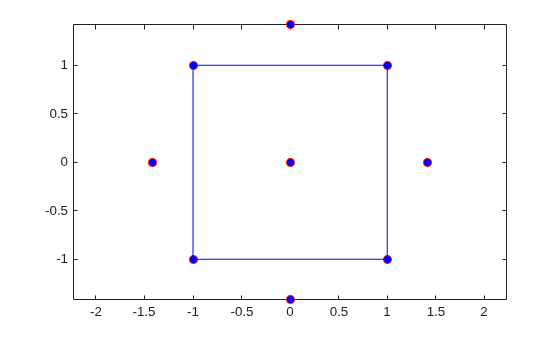

Examples
Version History
Introduced before R2006a
