PC Worx Support from Simulink PLC Coder

Use PC Worx and Simulink to design and test control systems.

PC Worx® integrates with the Simulink modeling environment, enabling you to design and implement a control system on PLCs. With Simulink, you can model and simulate a controller, and generate IEC 61131 structured text for import into PC Worx.

Simulink and PC Worx integration lets you:

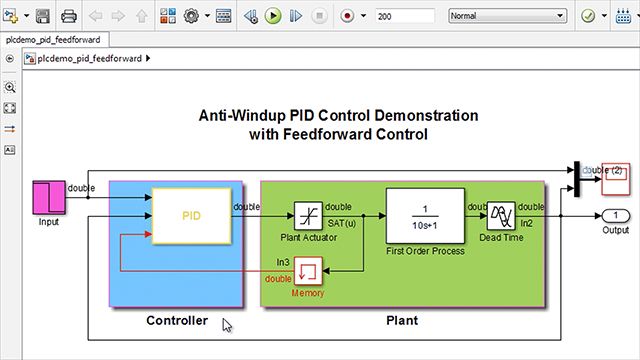

  • Model and simulate your control system using Simulink models and Stateflow charts
  • Detect design errors early and reduce physical prototyping time and cost
  • Generate IEC 61131 structured text from the same control algorithm model (using Simulink PLC Coder targeted for PC Worx)
  • Download the structured text into PC Worx (using Simulink PLC Coder)

You can then work within PC Worx to deploy the control application on your PLC.

Platform Support

Available on 64-bit Microsoft® Windows® only
