CODESYS Support from Simulink PLC Coder

Use CODESYS and Simulink to design and test control systems.

CODESYS™ integrates with the Simulink modeling environment, enabling you to design and implement a control system on PLCs. With Simulink, you can model and simulate a controller and generate IEC 61131 structured text for import into CODESYS.

Simulink and CODESYS integration lets you:

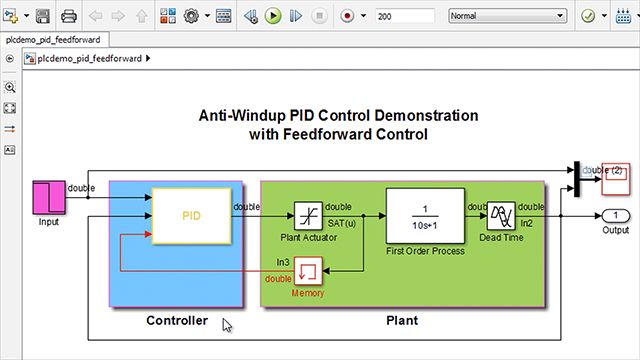

  • Model and simulate your control system using Simulink models and Stateflow charts
  • Detect design errors early and reduce physical prototyping time and cost
  • Generate IEC 61131 structured text from the same control algorithm model (using Simulink PLC Coder targeted for CODESYS)
  • Download the structured text into CODESYS (using Simulink PLC Coder)

You can then work within CODESYS to deploy the control application on your PLC.

Platform Support

Available on 64-bit Microsoft® Windows® only.

CODESYS 2.3: Automatic import feature supported on 64-bit Microsoft Windows only
